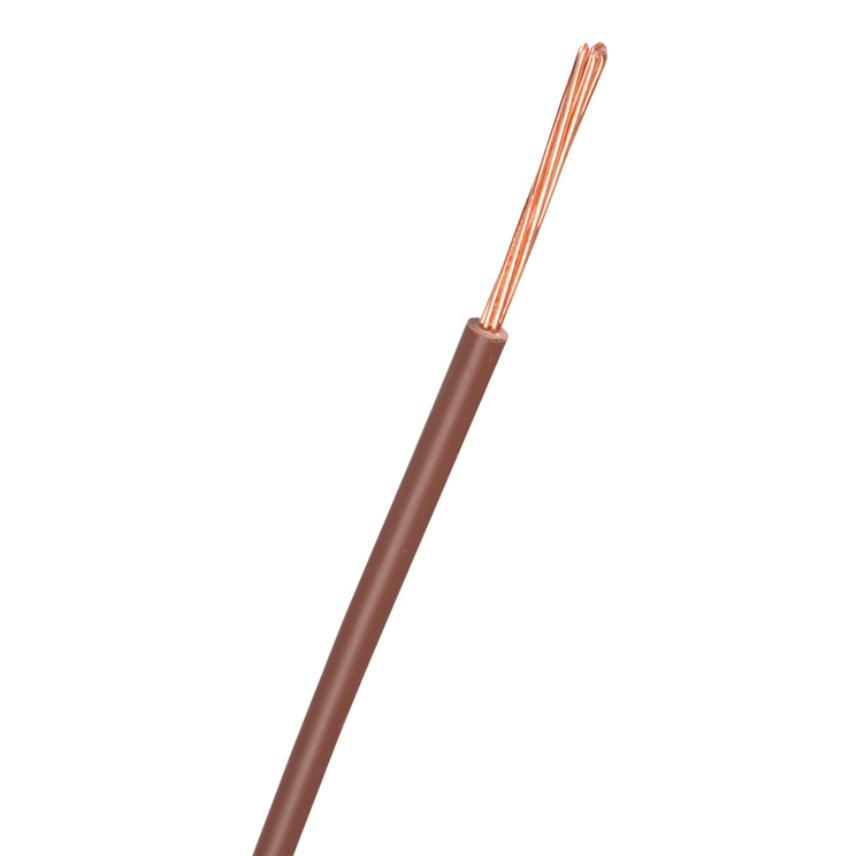

FQ Easy™ H07Z1-R 450/750 V
FQ Easy™ H07Z1-R 450/750 V
The cable may be used for installation in fixed installed conduit- or duct systems, and also as connecting cable in cupboards and armatures.
Read moreH07Z1-R 450/750 V 1,5
Nexans ref. 11485340-207-02
- Packaging: Coil (100m)
- Colour: Grey
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 1,5
Nexans ref. 11485340-410-02
- Packaging: Coil (100m)
- Colour: Orange
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 1,5
Nexans ref. 11485340-232-02
- Packaging: Coil (100m)
- Colour: Yellow / green
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 1,5
Nexans ref. 11485340-411-02
- Packaging: Coil (100m)
- Colour: Black
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 1,5
Nexans ref. 11485340-412-02
- Packaging: Coil (100m)
- Colour: White
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 1,5
Nexans ref. 11485340-208-02
- Packaging: Coil (100m)
- Colour: Brown
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 1,5
Nexans ref. 11485340-204-02
- Packaging: Coil (100m)
- Colour: Blue
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 1,5
Nexans ref. 11485340-203-02
- Packaging: Coil (100m)
- Colour: Red
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
FQ Easy™ 1,5 mm² 450/750 V Violett
Nexans ref. 11485340-211-02
- Packaging: Coil (100m)
- Colour: Violet
- Conductor cross-section: 1.5 mm²
- Nominal outer diameter: 3.0 mm
- Approximate weight: 2.1 kg/100m
H07Z1-R 450/750 V 2,5
Nexans ref. 11485440-208-02
- Packaging: Coil (100m)
- Colour: Brown
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 3.6 mm
- Approximate weight: 3.3 kg/100m
H07Z1-R 450/750 V 2,5
Nexans ref. 11485440-412-02
- Packaging: Coil (100m)
- Colour: White
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 3.6 mm
- Approximate weight: 3.3 kg/100m
H07Z1-R 450/750 V 2,5
Nexans ref. 11485440-411-02
- Packaging: Coil (100m)
- Colour: Black
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 3.6 mm
- Approximate weight: 3.3 kg/100m
H07Z1-R 450/750 V 2,5
Nexans ref. 11485440-204-02
- Packaging: Coil (100m)
- Colour: Blue
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 3.6 mm
- Approximate weight: 3.3 kg/100m
H07Z1-R 450/750 V 2,5
Nexans ref. 11485440-232-02
- Packaging: Coil (100m)
- Colour: Yellow / green
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 3.6 mm
- Approximate weight: 3.3 kg/100m
H07Z1-R 450/750 V 2,5
Nexans ref. 11485440-207-02
- Packaging: Coil (100m)
- Colour: Grey
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 3.6 mm
- Approximate weight: 3.3 kg/100m
H07Z1-R 450/750 V 2,5
Nexans ref. 11485440-410-02
- Packaging: Coil (100m)
- Colour: Orange
- Conductor cross-section: 2.5 mm²
- Nominal outer diameter: 3.6 mm
- Approximate weight: 3.3 kg/100m
Description
Description
Standards
-
ProductEN 50525-3-31
Description
H07Z1-R (FQ Easy™) is a halogen free, HFFR-insulated house wiring cable with one circular, stranded copper conductor. The cable is designed according to HD 21.3 in applicable parts. The conductor has resistance and number of wires according to IEC 60228 class 2. The insulation is marked "NEXANS GS SEMKO Ds2d2a2". H07Z1-R (FQ Easy™) meets the requirements for fire classification Dcas2d2a2 according to CPR. The conductor insulation shall be protected against UV light that can occur for example in light fixtures and light signs. The cable is certified by Intertek SEMKO.
Certification
Certified by Intertek SEMKO.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information

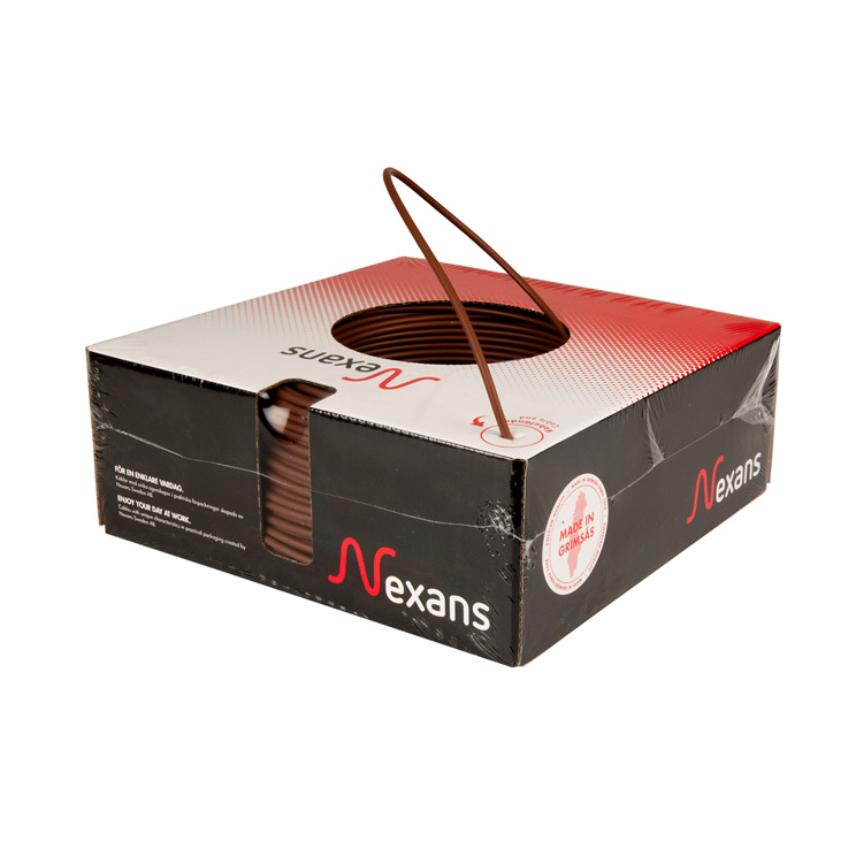

FQ Easy™ H07Z1-R is delivered in lengths of 100 m. The drum is marked with manufacturer, type of cable and length.
