H05V2-K 0,5 (RK 90°C) 300/500V

Description

Description

Standards

  • Product
    EN 50525-2-31

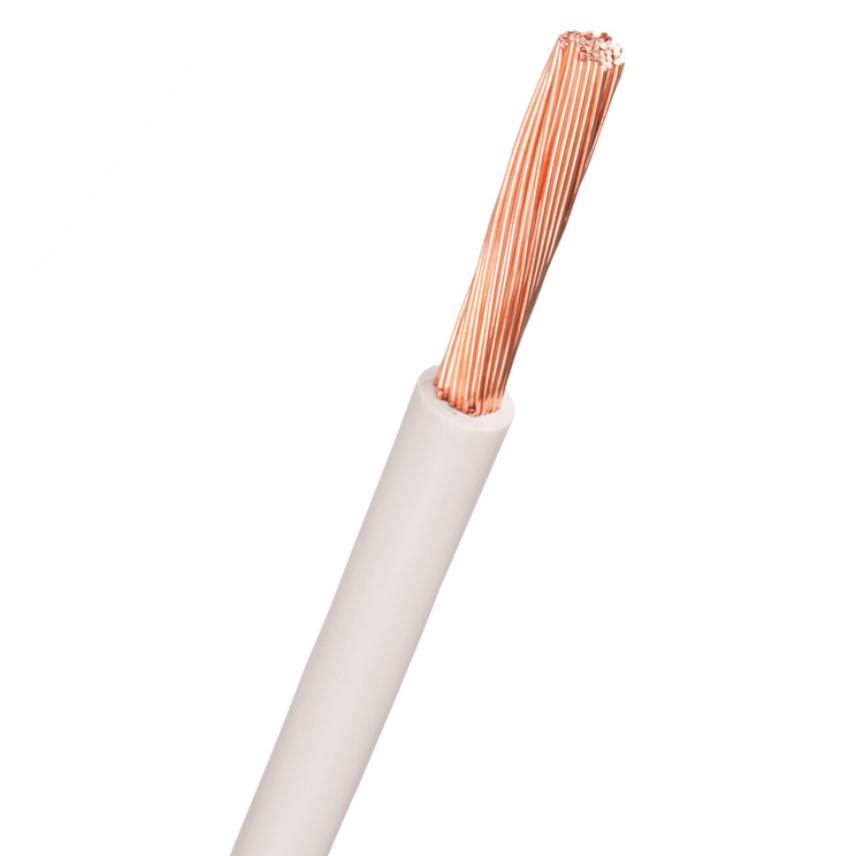

H05V2-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. Maximum 90°C conductor temperature. The conductor has resistance according to EN 60228 class 5. The insulation is marked ”NEXANS GS H05V2-K 0,75 SEMKO HAR MAX 90 C”. H05V2-K meets the requirements for CPR class E.


Certification

Certifeid by INTERTEK SEMKO.



Quality system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Spalva
Baltas
Laidininko medžiagos
Pliki variniai
Izoliacija
PVC
Nehalogeninis
Ne

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
1
Laidininko skerspjūvis
0,5 mm²
Skaičius šerdies laidų (nb x mm Ø)
16 x 0.19 mm Ø
Laidininko diametras
0,9 mm
Vidutinis izoliacijos storis
0,6 mm
Nominalus išorinis diametras
2,15 mm
Apytikslis svoris
9 kg/km

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
39 Ohm/km
Nominali Įtampa Uo/U
300 / 500 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Ilgis
200 m
Lenkimo faktorius klojant
4 (xD)
Pakavimas
Ritė
Ugniai atsparus
EN 60332-1-2
Darbinė temperatūra, diapazonas
0 ... 90 °C

Resources

Resources

Selling & delivery Information

H05V2-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.

Declaration of Performance

  • Declaration of Performance n� : 1000079-SEGR
  • Certification Date : 2018-11-06
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0366
  • Declared performance : Eca
