H05V2-K 1 (RK 90°C) 300/500V
H05V2-K 1 (RK 90°C) 300/500V
The cable is intended to be used for inside couplings in switch cabinet boxes and similar applications.
Read more- Nexans ref. : 11183171-070-05
Description
Description
Standards
-
ProductEN 50525-2-31
Description

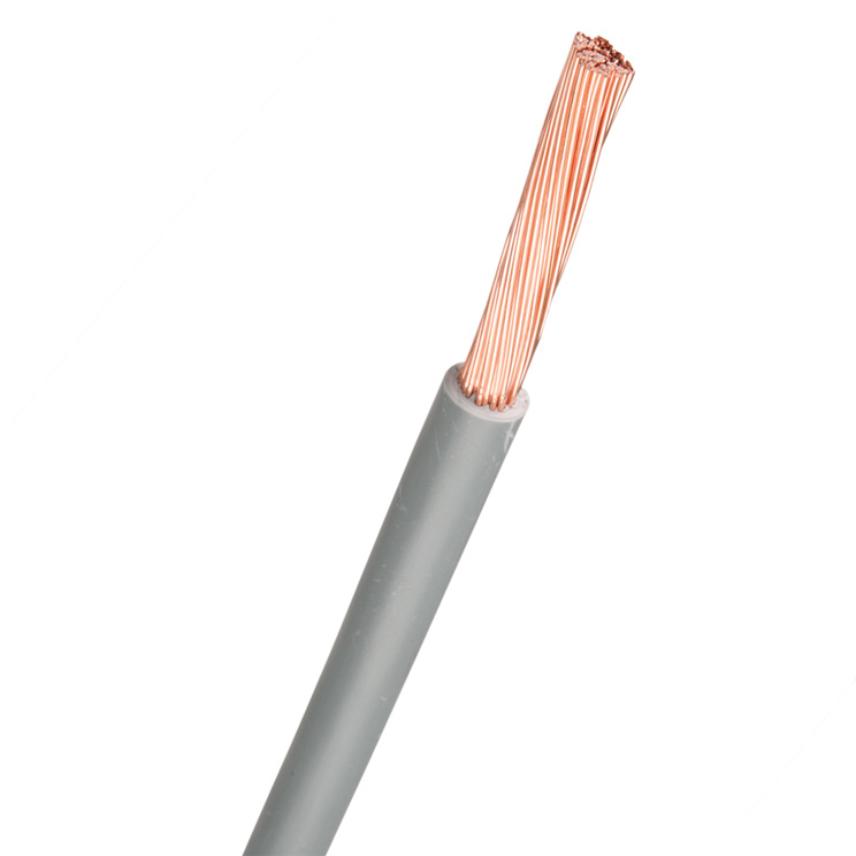

H05V2-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. Maximum 90°C conductor temperature. The conductor has resistance according to EN 60228 class 5. The insulation is marked ”NEXANS GS H05V2-K 0,75 SEMKO HAR MAX 90 C”. H05V2-K meets the requirements for CPR class E.
Certification
Certifeid by INTERTEK SEMKO.
Quality system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Matmenų charakteristikos
Matmenų charakteristikos
Elektrinės charakteristikos
Elektrinės charakteristikos
Naudojimo charakteristikos
Naudojimo charakteristikos
Resources
Resources
Selling & delivery Information
H05V2-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.
Declaration of Performance
- Declaration of Performance n� : 1000079-SEGR
- Certification Date : 2018-11-06
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Eca
