H05Z1-K 0,75 (RQ) 300/500V

Description

Description

Standards

  • Product
    EN 50525-3-31

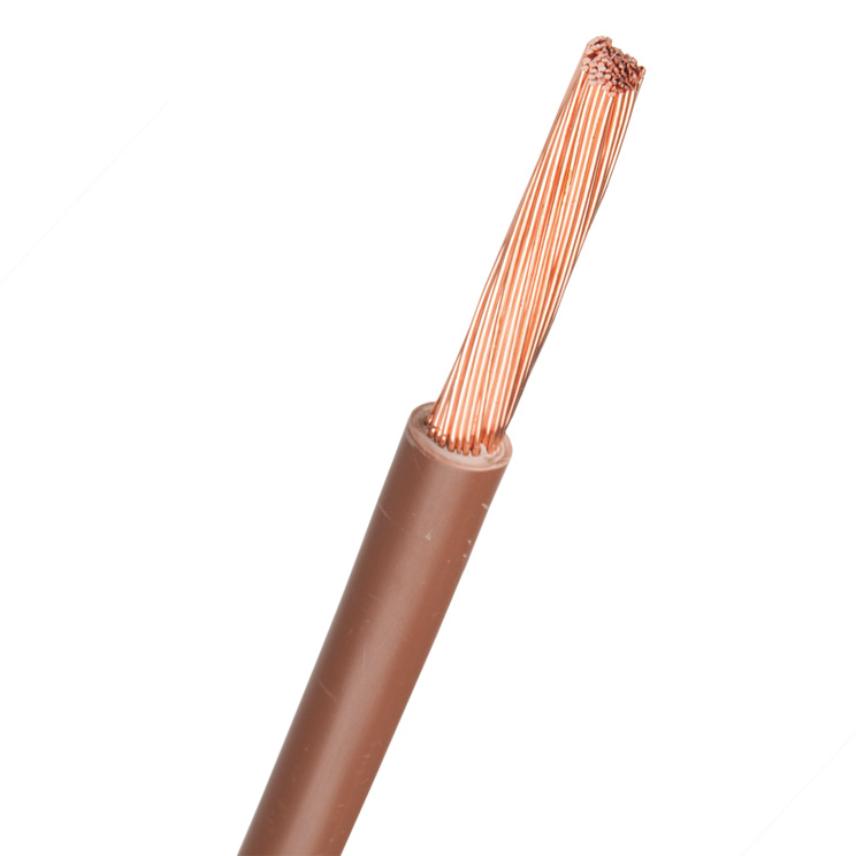

H05Z1-K is a halogen free, HFFR-insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-3-31. The conductor has resistance according to EN 60228 class 5. The insulation is marked "NEXANS GS H05Z1-K 0,75 MM2 TYPE 1 SEMKO". H05Z1-K meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.

Certification

Certified by INTERTEK SEMKO.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Spalva
Rudas
Laidininko medžiagos
Pliki variniai
Izoliacija
HFFR
Nehalogeninis
Taip
Laidininko forma
Žiedinis
Laidininko lankstumas
Class 5

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
1
Laidininko skerspjūvis
0,75 mm²
Skaičius šerdies laidų (nb x mm Ø)
24 x 0.19 mm Ø
Laidininko diametras
1,1 mm
Vidutinis izoliacijos storis
0,57 mm
Nominalus išorinis diametras
2,25 mm
Apytikslis svoris
12 kg/km

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
26 Ohm/km
Nominali Įtampa Uo/U
300 / 500 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Ilgis
500 m
Pakavimas
Ritė
Darbinė temperatūra, diapazonas
0 ... 70 °C
Bending factor when installed
4 (xD)

Resources

Resources

Selling & delivery Information

H05Z1-K (RQ) is delivered in specfied lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.

Declaration of Performance

  • Declaration of Performance n� : 1000210-SEGR
  • Certification Date : 2017-03-20
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 402
  • Declared performance : Dca-s2,d2,a2
