H05Z1-K 1,0 (RQ) 300/500V
H05Z1-K 1,0 (RQ) 300/500V
The cable may first be used for fixed, protected installation of signal- and regulating-circuits in apparatuses.
Read more- Nexans ref. : 11194340-204-02
Description
Description
Standards
-
ProductEN 50525-3-31
Description

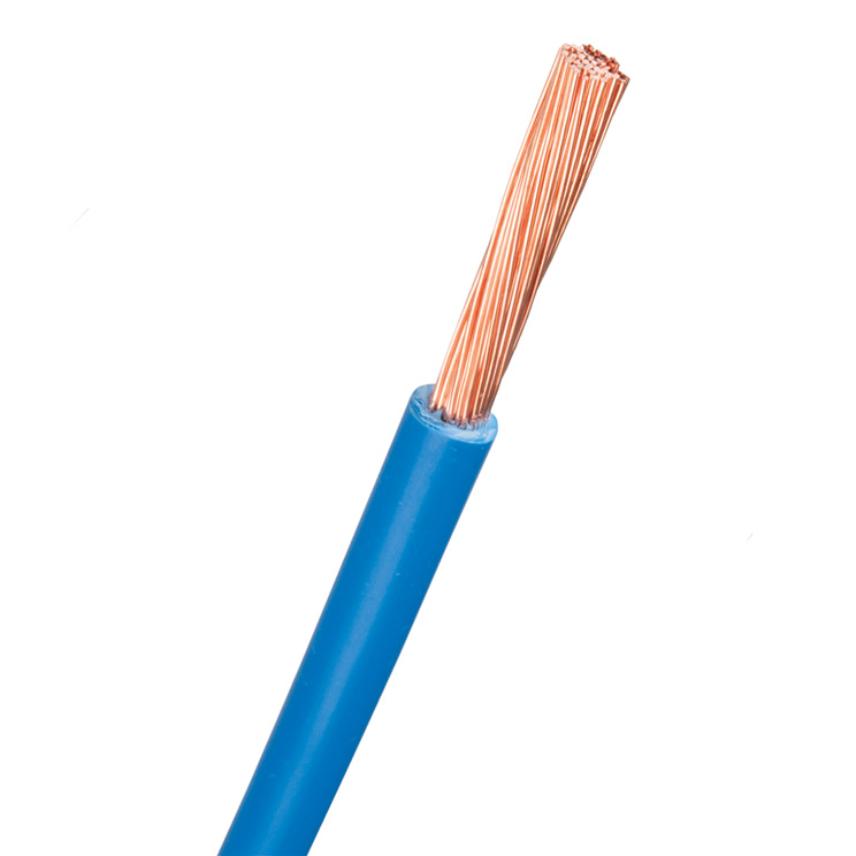

H05Z1-K is a halogen free, HFFR-insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-3-31. The conductor has resistance according to EN 60228 class 5. The insulation is marked "NEXANS GS H05Z1-K 0,75 MM2 TYPE 1 SEMKO". H05Z1-K meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.
Certification
Certified by INTERTEK SEMKO.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Matmenų charakteristikos
Matmenų charakteristikos
Elektrinės charakteristikos
Elektrinės charakteristikos
Naudojimo charakteristikos
Naudojimo charakteristikos
Resources
Resources
Selling & delivery Information
H05Z1-K (RQ) is delivered in specfied lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.
Declaration of Performance
- Declaration of Performance n� : 1000210-SEGR
- Certification Date : 2017-03-20
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 402
- Declared performance : Dca-s2,d2,a2
