H07V2-K 2,5 (RK 90°C) 450/750V

Description

Description

Standards

  • Product
    EN 50525-2-31

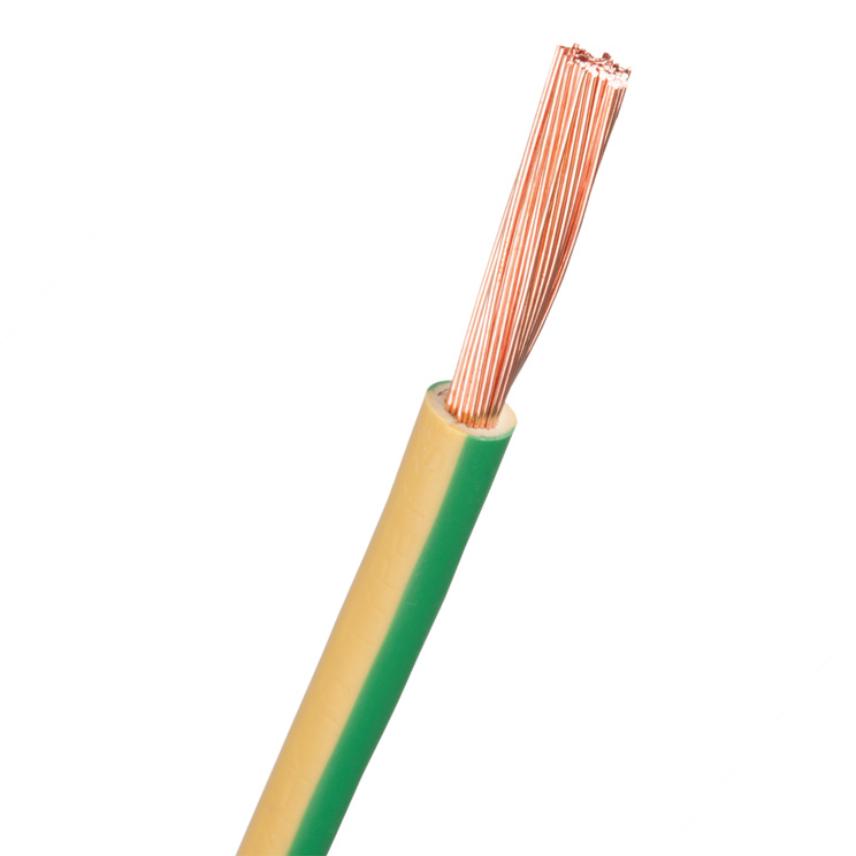

H07V2-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. The conductor has resistance according to EN 60228 class 5. The insulation is marked ”NEXANS GS H07V2-K 0,75 SEMKO (HAR) E". H07V2-K meets the requirements for CPR class E.



Certification

Certifeid by INTERTEK SEMKO.



Quality system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Spalva
Geltonas / žalias
Laidininko medžiagos
Pliki variniai
Izoliacija
PVC
Nehalogeninis
Ne
Laidininko forma
Žiedinis
Laidininko lankstumas
Class 5

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
1
Laidininko skerspjūvis
2,5 mm²
Skaičius šerdies laidų (nb x mm Ø)
54 x 0.23 mm Ø
Laidininko diametras
2,05 mm
Vidutinis izoliacijos storis
0,8 mm
Nominalus išorinis diametras
3,6 mm
Apytikslis svoris
32 kg/km

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
7,98 Ohm/km
Nominali Įtampa Uo/U
450 / 750 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Ilgis
100 m
Pakavimas
Ring
Ugniai atsparus
IEC 60332-1
Darbinė temperatūra, diapazonas
0 ... 90 °C
Bending factor when installed
4 (xD)

Resources

Resources

Selling & delivery Information

H07V2-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.

Declaration of Performance

  • Declaration of Performance n� : 1000222-SEGR
  • Certification Date : 2017-08-22
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0366
  • Declared performance : Eca
