H07V2-K 4 (RK 90°C) 450/750V

Description

Description

Standards

  • Product
    EN 50525-2-31

Description

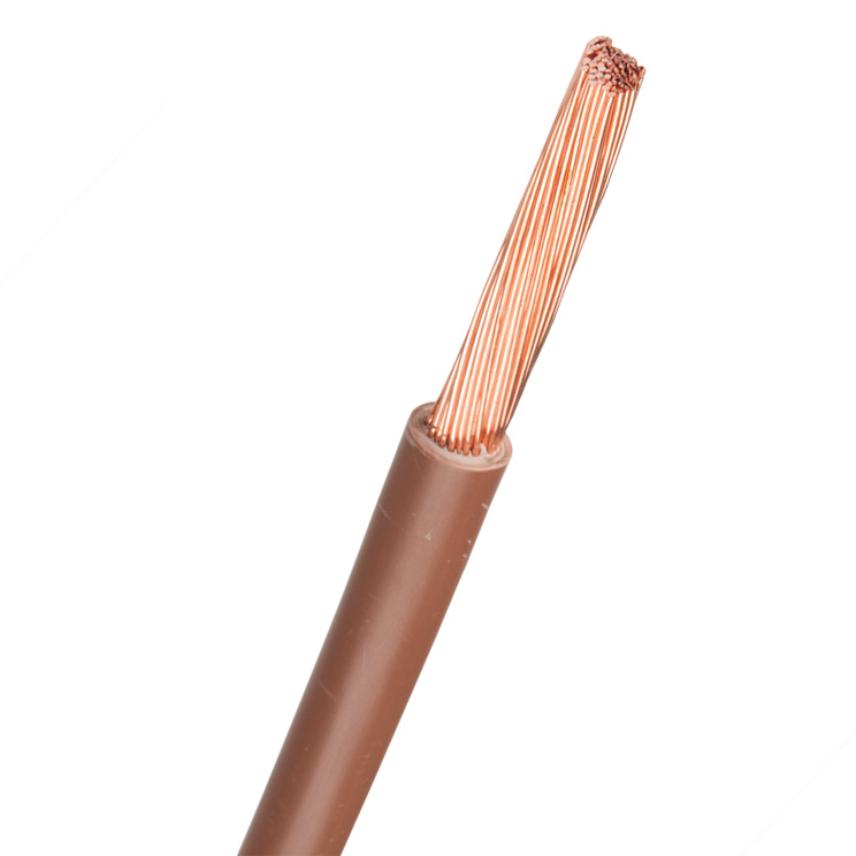

H07V2-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. The conductor has resistance according to EN 60228 class 5. The insulation is marked ”NEXANS GS H07V2-K 0,75 SEMKO (HAR) E". H07V2-K meets the requirements for CPR class E.

Certification

Certifeid by INTERTEK SEMKO.

Quality system

Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Spalva
Rudas
Laidininko medžiagos
Pliki variniai
Izoliacija
PVC
Nehalogeninis
Ne
Laidininko forma
Žiedinis
Laidininko lankstumas
Class 5

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
1
Laidininko skerspjūvis
4 mm²
Skaičius šerdies laidų (nb x mm Ø)
48 x 0.31 mm Ø
Laidininko diametras
2,5 mm
Vidutinis izoliacijos storis
0,8 mm
Nominalus išorinis diametras
4,05 mm
Apytikslis svoris
45 kg/km

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
4,95 Ohm/km
Nominali Įtampa Uo/U
450 / 750 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Ilgis
1000 m
Pakavimas
Laidas sumontuotas dėžutėje
Ugniai atsparus
IEC 60332-1
Darbinė temperatūra, diapazonas
0 ... 90 °C
Bending factor when installed
4 (xD)

Resources

Resources

Selling & delivery Information

H07V2-K will be delivered in lengths of 100 to 500 m. The drum is marked with manufacturer, type of cable and length.

Declaration of Performance

  • Declaration of Performance n� : 1000222-SEGR
  • Certification Date : 2017-08-22
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0366
  • Declared performance : Eca
