H07Z1-K 1,5 (RQ) 450/750 V

Description

Description

Standards

  • Product
    EIA 359-A; HD 21.3
  • Test
    EN 50268; IEC 60754
  • National
    SS 424 02 31-3

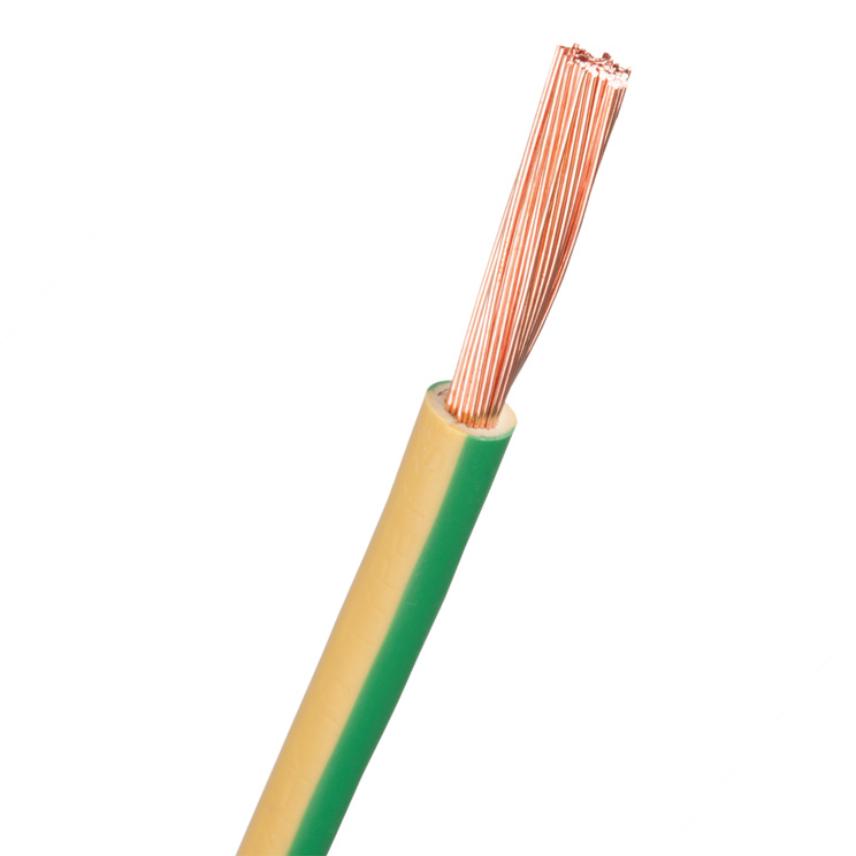

S07Z1-K is a halogen free, HFFR-insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to HD 21.3 in applicable parts. The conductor has resistance according to IEC 60228 class 5. The insulation is marked "NEXANS GS Z1 SEMKO AREA mm2"or "NEXANS GS SEMKO AREA mm2 HALOGENFRI". S07Z1-K meets the requirements for flammability according IEC 60332-3 category C (F4C) for cross-section 1,5 and 2,5 mm², IEC 60332-1 (F2) for cross-sections 4, 6, and 10 mm² and HD 605-4.1.5, SS 424 14 75 (F3) for cross-sections 16 to 400 mm². The cable is certified by SEMKO.



Certification

Certified by SEMKO

Flammability class

IEC 60332-3 Category C,  for cross-section 1,5 and 2,5 mm2

IEC 60332-1, for cross-section 4, 6 and 10 mm2

HD 605-4.1.5, SS 424 14 75, F3 for cross-section 16 to 400 mm2.

Quality system

EN ISO 9001.

Environmental management system

ISO 14001 and registered according to EMAS.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Pliki variniai
Laidininko lankstumas
Lankstus, klasė 5
Laidininko forma
Žiedinis
Izoliacija
HFFR
Nehalogeninis
Taip
Spalva
Geltonas / žalias

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
1
Laidininko skerspjūvis
1,5 mm²
Skaičius šerdies laidų (nb x mm Ø)
Laidininko diametras
1,55 mm
Vidutinis izoliacijos storis
0,67 mm
Nominalus išorinis diametras
2,8 mm
Apytikslis svoris
21 kg/km

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
13,3 Ohm/km
Nominali Įtampa Uo/U
450 / 750 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Ilgis
2000 m
Pakavimas
Dėžutė
Darbinė temperatūra, diapazonas
-40 ... 70 °C
Klojimo operacijos lenkimo radiusas
- mm
Atsparumas ultravioletiniams spinduliams
Bending factor when installed
4 (xD)

Resources

Resources

Selling & delivery Information

S07Z1-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.

Declaration of Performance

  • Declaration of Performance n� : 1000311-SEGR
  • Certification Date : 2017-03-30
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0402
  • Declared performance : Dca-s2,d2,a2
