H07Z1-K 185 (RQ) 450/750 V
H07Z1-K 185 (RQ) 450/750 V
The cable may first be used for inside couplings in switch cabinet boxes and similar applications.
Read more- Nexans ref. : 11196498-822-05
Description
Description
Standards
-
InternationalEN 50525-3-31; EN 50268; IEC 60754; IEC 61034
-
NationalSS EN 50525-3-31

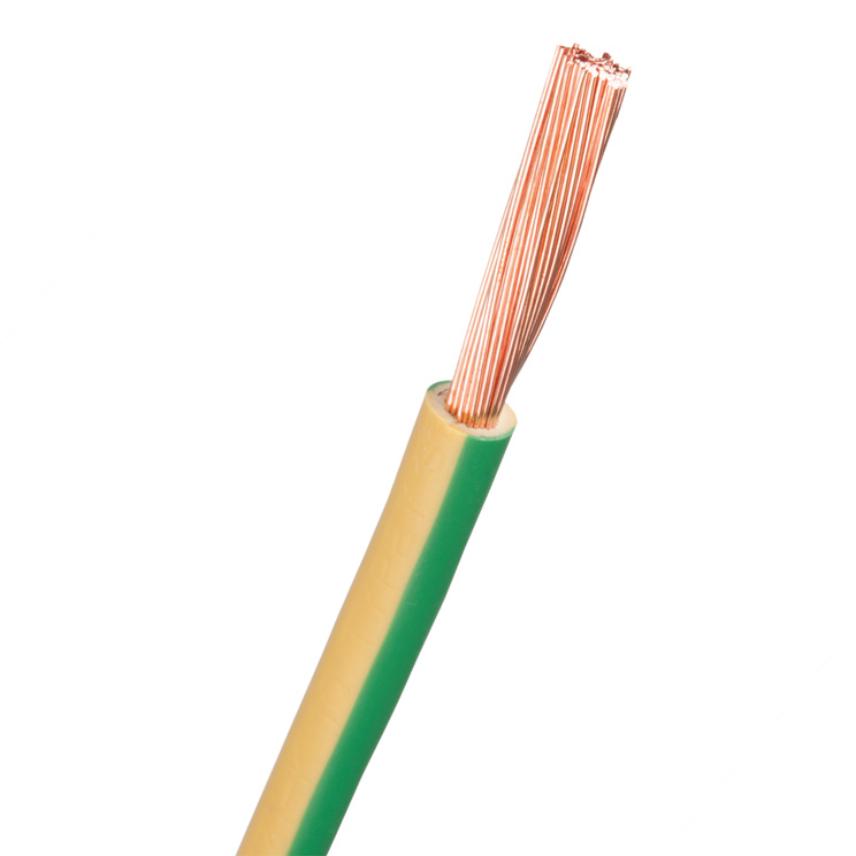

H07Z1-K is a halogen free, HFFR insulated, connecting cable with one circular, multi stranded copper conductor. 300 and 400 mm² does not fulfil EN 50525-3-31, and is because of that called S07Z1. The cable is designed according to EN 50525-3-31 in applicable parts. The conductor has resistance according to EN 60228 class 5. The insulation is marked "NEXANS GS Z1 SEMKO AREA mm2"or "NEXANS GS SEMKO AREA mm2 HALOGENFRI". H07Z1-K meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire. This product is also part of our Windlink® offer dedicated to wind turbines.
Certification
Certified by INTERTEK SEMKO.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Matmenų charakteristikos
Matmenų charakteristikos
Elektrinės charakteristikos
Elektrinės charakteristikos
Naudojimo charakteristikos
Naudojimo charakteristikos
Resources
Resources
Selling & delivery Information
H07Z1-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.
Declaration of Performance
- Declaration of Performance n� : 1000311-SEGR
- Certification Date : 2017-03-30
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0402
- Declared performance : Dca-s2,d2,a2
