H07Z1-K 240 (RQ) 450/750 V

Description

Description

Standards

  • Product
    EN 50525-3-31; SS EN 50525-3-31
  • Test
    EN 50268; IEC 60754; IEC 61034

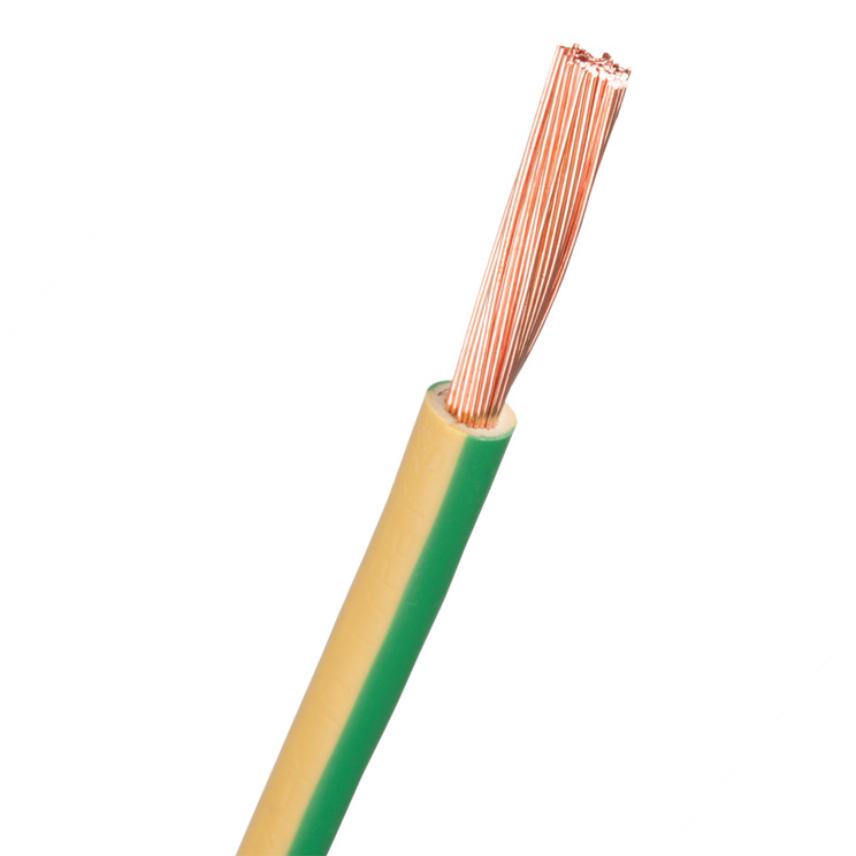

H07Z1-K is a halogen free, HFFR insulated, connecting cable with one circular, multi stranded copper conductor. 300 and 400 mm² does not fulfil EN 50525-3-31, and is because of that called S07Z1. The cable is designed according to EN 50525-3-31 in applicable parts. The conductor has resistance according to EN 60228 class 5. The insulation is marked "NEXANS GS Z1 SEMKO AREA mm2"or "NEXANS GS SEMKO AREA mm2 HALOGENFRI". H07Z1-K meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire. This product is also part of our Windlink® offer dedicated to wind turbines.


Certification

Certified by INTERTEK SEMKO.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Pliki variniai
Laidininko lankstumas
Lankstus, klasė 5
Laidininko forma
Žiedinis
Izoliacija
HFFR
Nehalogeninis
Taip
Spalva
Geltonas / žalias

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
1
Laidininko skerspjūvis
240 mm²
Skaičius šerdies laidų (nb x mm Ø)
-
Laidininko diametras
21,3 mm
Vidutinis izoliacijos storis
2,2 mm
Nominalus išorinis diametras
25,7 mm
Apytikslis svoris
2150 kg/km

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
- Ohm/km
Nominali Įtampa Uo/U
450 / 750 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Ilgis
500 m
Pakavimas
Būgnas
Darbinė temperatūra, diapazonas
-40 ... 70 °C
Klojimo operacijos lenkimo radiusas
- mm
Atsparumas ultravioletiniams spinduliams
-
Bending factor when installed
4 (xD)

Resources

Resources

Selling & delivery Information

H07Z1-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.

Declaration of Performance

  • Declaration of Performance n� : 1000311-SEGR
  • Certification Date : 2017-03-30
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0402
  • Declared performance : Dca-s2,d2,a2
