AXQ INFRA 1kV 5G16

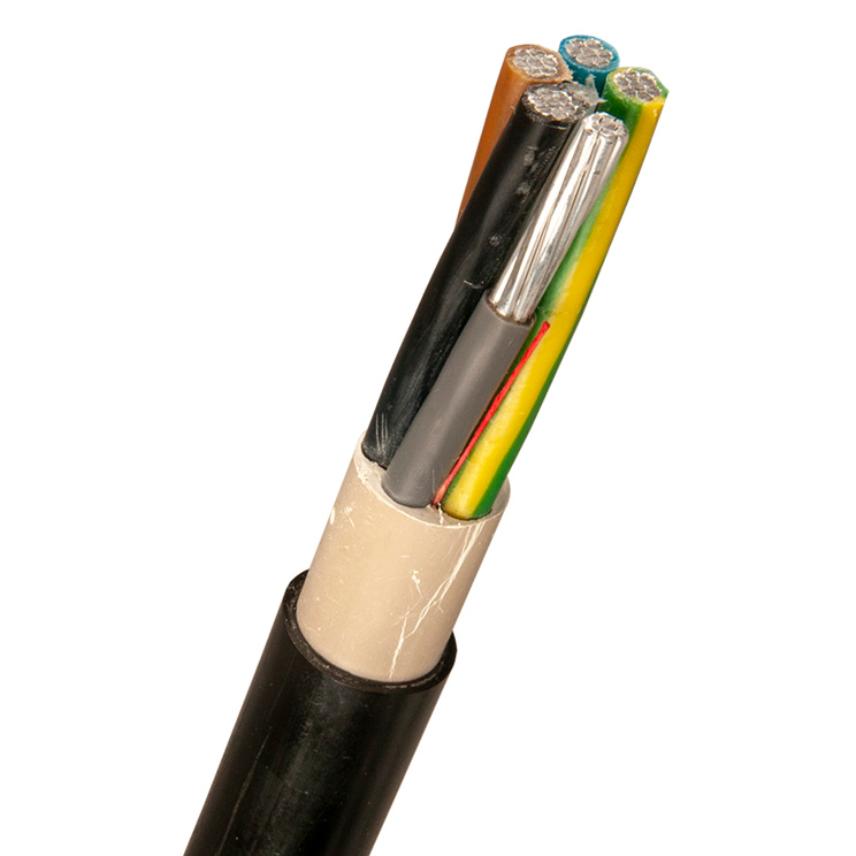

AXQ INFRA  is a halogen free, XLPE-insulated, HFFR-sheathed cable with sector shaped (50-240 mm² ) or round (16-25 mm²) stranded aluminium conductors. The cables (50-240 mm² ) for TNS-system has an earth conductor of annealed copper. 16-25 mm² and 50-240 mm² for TNC-system has an earth conductor of aluminium. AXQ INFRA  is designed according to HD 603 in applicable parts. The conductors have resistance and number of wires according to SS-EN 60228 class 2. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. The cable type meets the requirements for CPR class E. The cable emits no corrosive gases and has low smoke production during fire. The sheath opens with cable tear thread.

Standards

AXQ INFRA 1 kV is manufactured and tested according to HD 603 S1/5P in applicable parts. The cable can be loaded in accordance with national regulations on electrical installations.

Certification

Certified by Intertek SEMKO.

Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
