RQQ 1x240 1kV
RQQ 1x240 1kV

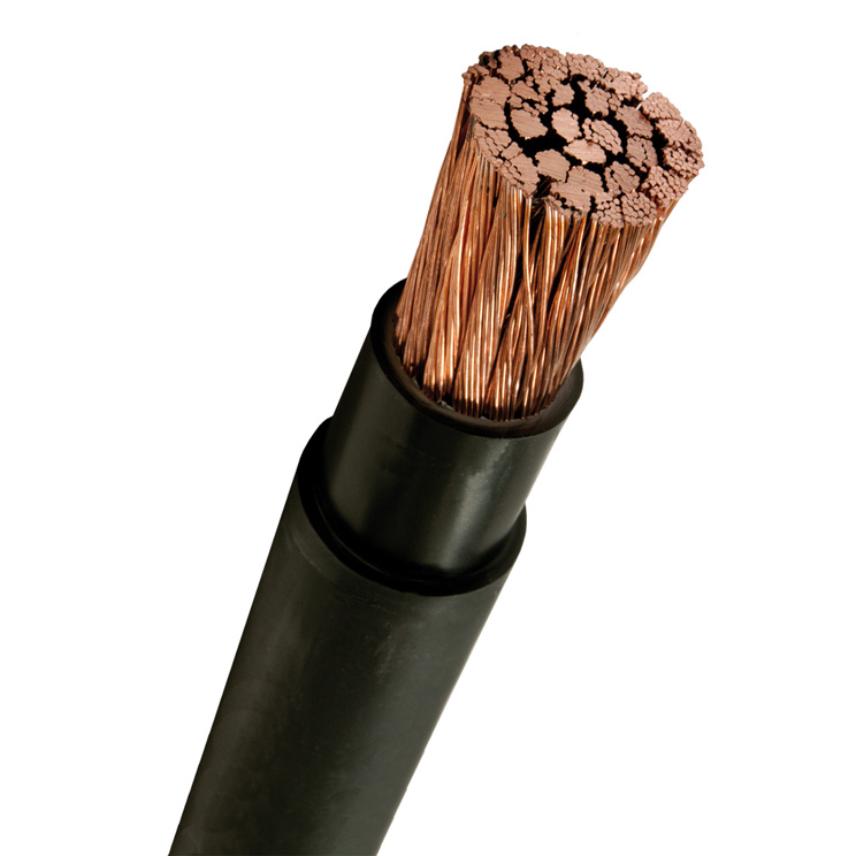

Halogenfree low voltage cable. For permanent installation indoor and outdoor in or above ground and in water.
Read more- Nexans ref. : 11121398
- EAN : 7330000079731
Description
Description
Standards
-
TestEN 50268; IEC 60754
-
NationalSS 424 14 18
Description
RQQ (S1Z1Z1-F) is a halogenfree, HFFR-insulted and -sheathed cable with circular and multi stranded copper conductor. The cable is designed according to SS 424 14 18. The conductors have resistance according to IEC 60228 class 5. The sheath is marked "NEXANS GS AREA mm2 1kV Dca2d2a2 year+month". RQQ meets the requirements for flame class Dcas2d2a2 according to CPR.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recykling.
Quality system
Designed, manufactured and tested in accordance with ISO 9001.
Environmental management system
The activities at our plant in Grimsås are certified to ISO 14001.
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Matmenų charakteristikos
Matmenų charakteristikos
Elektrinės charakteristikos
Elektrinės charakteristikos
Naudojimo charakteristikos
Naudojimo charakteristikos
Resources
Resources
Selling & delivery Information
RQQ will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
Declaration of Performance
- Declaration of Performance n� : 1000173-SEGR
- Certification Date : 2017-01-27
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Dca-s2,d2,a2
