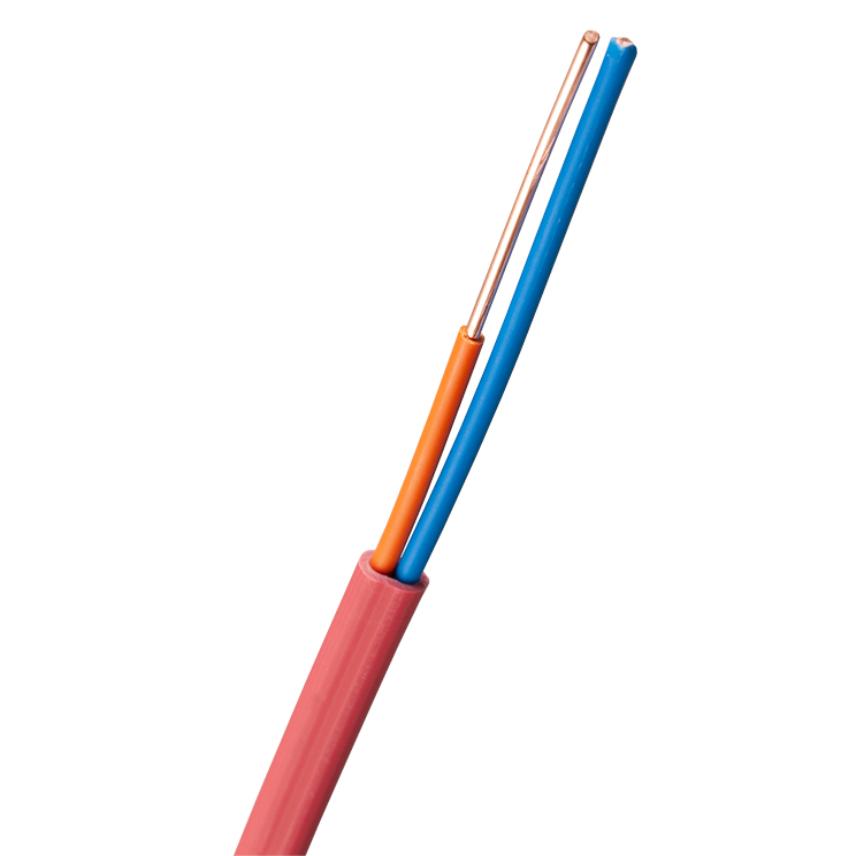

EQQRB Easy™ 2X1,0 MM
EQQRB Easy™ 2X1,0 MM
Signalling cable with halogen free, flame retardant insulation and sheath.
Read more- Nexans ref. : 18440241-803-02
- EAN : 7330000079922
Description
Description
Standards
-
NationalSS 424 16 09
Design
Signalling cable with halogen free, flame retardant insulation and sheath. EQQRB Easy™ is used as a signalling cable in various control and monitoring installations, including fire alarm installations. The cable is designed in accordance with SS 424 16 09. The cable is intended for open fixed installation or in pipes indoors according to SS 424 16 38 and outdoors and protected against mechanical damage also in ground according to SS 424 16 37. Fire performance according to CPR class Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Matmenų charakteristikos
Matmenų charakteristikos
Elektrinės charakteristikos
Elektrinės charakteristikos
Naudojimo charakteristikos
Naudojimo charakteristikos
Resources
Resources
Documentation
Selling & delivery Information
EQQRB Easy™ will be delivered in lengths of 100 m to 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
Declaration of Performance
- Declaration of Performance n� : 1000162-SEGR
- Certification Date : 2017-03-07
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Dca-s2,d2,a2
