Duct/Direct - FYOVD2PMU 2x2 FIN2012 Unitube (1 - 12 fibres)
Duct/Direct - FYOVD2PMU 2x2 FIN2012 Unitube (1 - 12 fibres)
Type FYOVD2PMU is a unitube fibre optical cable. The cable type is intended for use in regional, urban, and area property networks.
Read moreDescription
Description
Standards
-
ProductIEC 60794; IEC 60794-1
-
TestIEC 60793
-
InternationalITU-T Rec. G.650; ITU-T Rec. G.652
Description

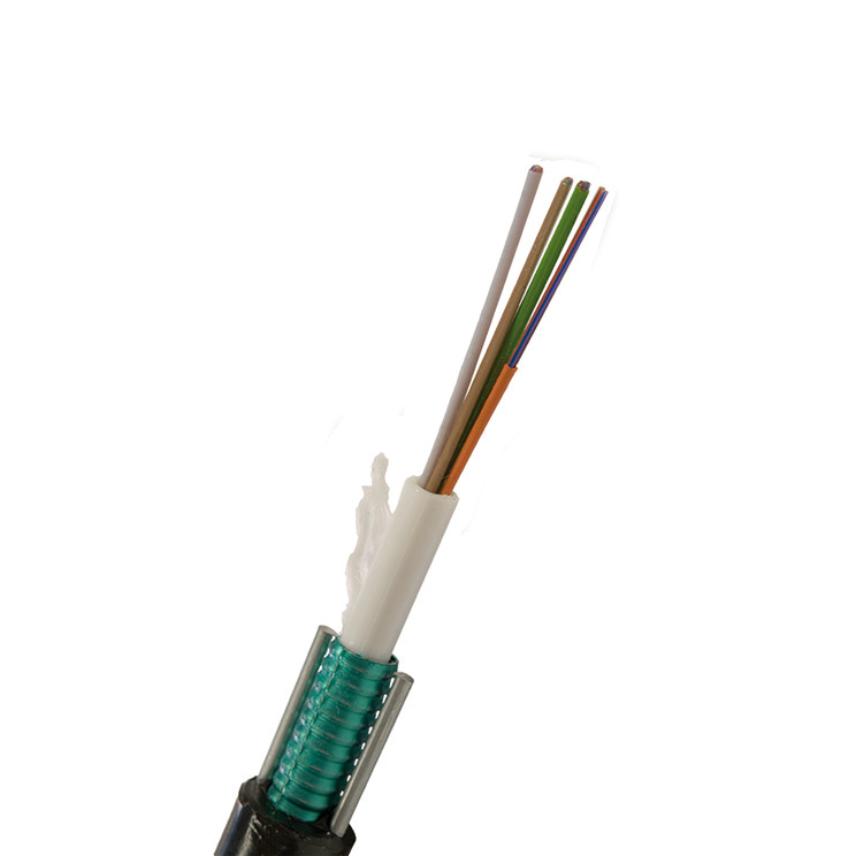

FYOVD2PMU is a unitube fiber optical cable and intended for outdoor use in ducts or direct buried. The design can incorporate 1 -24 fibers in a unitube. The individually colored fibers are grouped with color threads up to 12f. The cable is longitudinal water-blocked through the use of polymeric filling compound. Corrugated coated steel tape and galvanized steel wire is used for rodent and mechanical protection. The cable has an outer sheath of halogen- free black polyethylene.
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Optinės gyslos tipas
MultiMode 62,5/125
Konstrukcijos tipas
Vienvamzdis
Šarvo tipas
Gofruotas plienas
Išorinis apvalkalas
LLDPE
Apvalkalo spalva
Juodas
Nehalogeninis
Taip
Be metalo
Ne
Additional strength member
Steel rods
Length water tightness Tube
Jelly
Matmenų charakteristikos
Matmenų charakteristikos
Optinių gyslų skaičius
-
Nominalus išorinis diametras
- mm
Vamzdelio diametras
4,8 mm
Optinių gyslų skaičius, diapazonas
1 ... 24
Additional Strength member size
2,0 mm
Naudojimo charakteristikos
Naudojimo charakteristikos
Montavimo tipas
Išorės – Tiesioginis užkasimas
Darbinė temperatūra, diapazonas
-45 ... 70 °C
Aplinkos montavimo temperatūra, diapazonas
-15 ... 60 °C
Saugojimo temperatūra, diapazonas
-45 ... 70 °C
Resources
Resources
Documentation
Fibre and tube identification (Fin2012)
pdf — 78.6 kB
Fiberspecification for 62,5 OM1
pdf — 58.2 kB
