Duct/Direct - FYO2PMU FIN2012 Unitube (4 - 24 fibres)
Duct/Direct - FYO2PMU FIN2012 Unitube (4 - 24 fibres)
FYO2PMU is a unitube fibre optical cable. The cable type is intended for use in regional, urban, and area property networks.
Read moreDescription
Description
Standards
-
ProductIEC 60794; IEC 60794-1
-
TestIEC 60793
-
InternationalITU-T Rec. G.652
Description

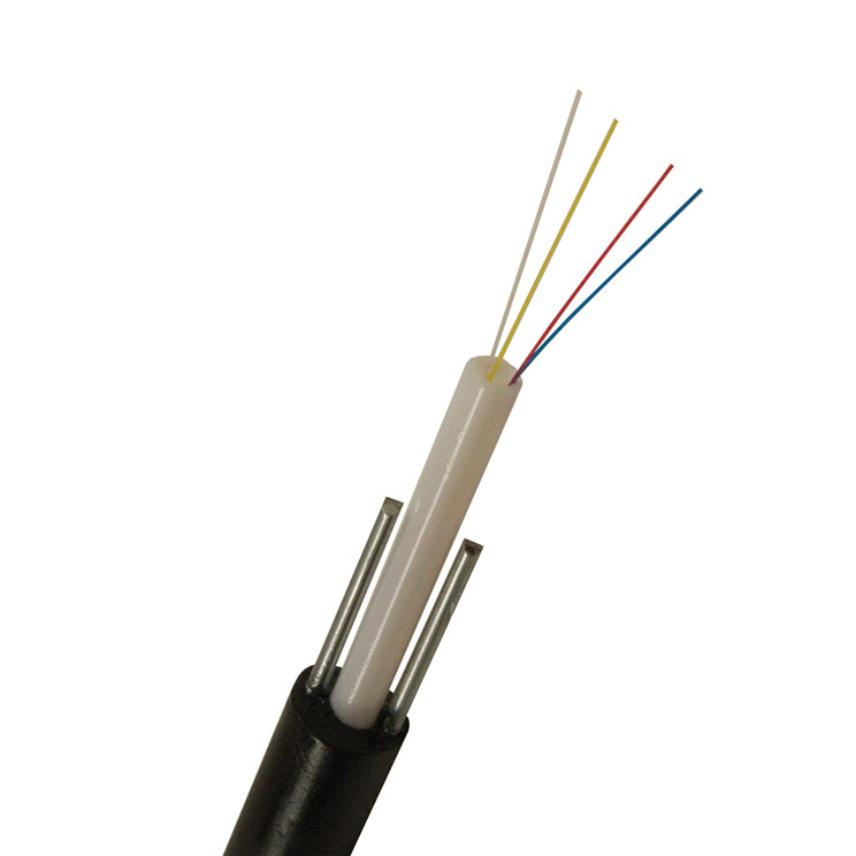

FYO2PMU is a unitube fiber optical cable and intended for outdoor use in ducts or direct buried. The tube is 3.5mm or 4.8mm. The design incorporates 4-24 fiber in a unitube. The individually colored fibers are grouped with color threads up to 12f.. The cable is longitudinal water-blocked through the use of polymeric filling compound. Strength member (steel rods) is used for mechanical protection. The cable has an outer sheath of halogen- free black polyethylene
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Konstrukcijos tipas
Vienvamzdis
Optinės gyslos tipas
SM (G.652D)
Išorinis apvalkalas
LLDPE
Apvalkalo spalva
Juodas
Nehalogeninis
Taip
Be metalo
Ne
Additional strength member
Steel wires
Length water tightness Tube
Jelly
Matmenų charakteristikos
Matmenų charakteristikos
Optinių gyslų skaičius
-
Nominalus išorinis diametras
8,3 mm
Vamzdelio diametras
3,5 mm
Additional Strength member size
1,4 mm
Mechaninės charakteristikos
Mechaninės charakteristikos
Atsparumas smūgiui (EN 187 000)
20 J
Suspaudimo atsparumas (EN 187 000)
- kN
Naudojimo charakteristikos
Naudojimo charakteristikos
Montavimo tipas
Išorės - Kanalas
Darbinė temperatūra, diapazonas
-45 ... 70 °C
Aplinkos montavimo temperatūra, diapazonas
-15 ... 60 °C
Saugojimo temperatūra, diapazonas
-45 ... 70 °C
Resources
Resources
Documentation
Fibre and tube identification (Fin2012)
pdf — 78.6 kB
Fiberspecification for single mode (G652D) used in tubes
pdf — 195.9 kB
